Lovato switch disconnectors 16-160 A 0-I AC (series GA)

Switch disconnectors 16-160 A 0-I AC (series GA) by Lovato.
Product Inquiry

Product Inquiry

Lovato switch disconnectors 16-160 A 0-I AC (series GA)

    DETAILED DESCRIPTION

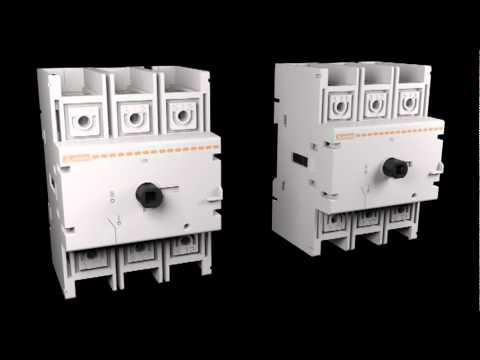

    The three-pole 16A to 63A switch disconnectors, are made up of a single unit body, merely 36mm/1.42” wide, while the 63A to 160A ratings, of another body size of only 70mm/2.75” wide.

    Mounting and removal of the fourth pole and add-on blocks are simple and quick operations with no need for tools.

    The 16A to 63A types are listed for Canada and the USA, certified according to UL508/CSA C22.2 n° 14.
    The 63A to 125A types are listed for Canada and the USA, certified according to UL98A/CSA C22.2 n° 4.​

     Simultaneous or early-make contact operation of the fourth pole with respect to the switch disconnector poles.

    Mounting up to 4 auxiliary contacts or 1 fourth pole and 3 auxiliary contacts (2 blocks always on the right and 2 on the left side) of each switch disconnector. The earth and neutral terminals and fuse holder also can be added.

    A mechanical coupling system is available for the 16A to 125A switch disconnectors with direct operating handle to provide 6/8 pole disconnectors along with a mechanical interlock mechanism for the line changeover function (I - 0 - II).

    Extension shafts. Door coupling handles, padlockable.

    Screw or ring fixing.

    Further information about these products and their accessories at pdf-link below.



    • Change type
      0-I to I-0-II
    • Poles
      3x
    • Rated current (AC21A)
      16, 25, 40, 63, 80, 100, 125, 160 A AC
