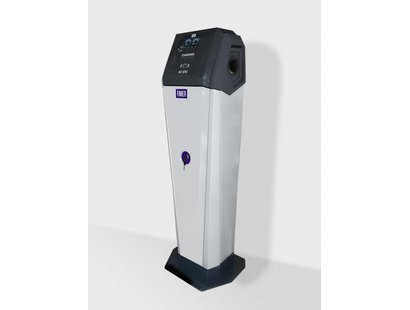

AC-EVC-030
AC-EVC-030-Future Net
The FIMER AC-EVC charger line design is based on solidity, functionality and maintainability, in compliance with the international standard IEC 61851-1.
It is a charging point able to charge up to two electric vehicles in alternating current, each up to 22kW, and it can be configured in different ways.
"Networked mode", where the charging point is intelligently connected to a centralized system through an internet connection, through which it is possible to manage the authorizations, the accounting, the permits and payments of energy.
The FIMER AC-EVC charging points are made of durable materials, designed to withstand any weather condition of an outdoor installation and to ensure an extremely simple use both for the user and for the maintainer. Indeed, the electronic control devices are accessible separately from the power parts, with great advantages in terms of safety and robustness.
Product Inquiry
Product Inquiry
DETAILED DESCRIPTION
It is a charging point equipped with the previous configuration features, also allows to be customized according to the needs of the customer. It is therefore equipped with:
- An Up to two Type 2 sockets, equipped with all the measurement and protection systems, electromechanical retention during charging, communication with the electric vehicle, connection monitoring and regulation of the current through PWM and differential protection circuit breaker type B.
- Color-coded Status LED for each socket (Ready to use, Charging, Alarm, etc ...)
- Smart fault management, with automatic or remotely controllable reclosure of the circuit breaker.
- Internal load manager for the distribution of the maximum load set by the user, between the two sockets.
- Plug & Charge operating mode.
- Back-up power supply with super “Supercap” capacitors.
- Internal temperature sensors.
- Stainless steel case.
- An intelligent remote monitoring and control system with an app for the customer and with a dashboard for the operator, with accounting energy, which will allow the roaming between various operators.
- OLED display with status, kWh counter, instantaneous kW, etc ...
- RFiD reader for user authentication and recharge management.
- Aesthetic customization (optional).
- Optional remote monitoring capabilities via modem with OCPP 1.5 / 1.6 protocol compatible with all recharging point monitoring platforms.
