DETAILED DESCRIPTION

ATL600 and ATL610

The ATL600 and ATL610 are the new automatic transfer switch controllers designed by Lovato Electric to control and supervise the automatic or manual transfer between two different supply lines that can be utility to utility, utility to generator and generator to generator.
The unit includes all the necessary features to supervise and control power supply sources, composed by energy distribution systems or generating sets, and the relative transfer equipment, such as contactors, motorized circuit breakers and changeover switches.
The utility changeover, from one power source to the other, can be automatic or manual.
Two versions are available:
ATL600 with a single AC power supply NOT expandable with EXP modules and
ATL610 with double power supply AC/DC and expandable on the back with the EXP modules.
The ATL610 preserves easiness installation with the possibility of expansion from the rear, where EXP series modules can be slotted (2 slot are available).

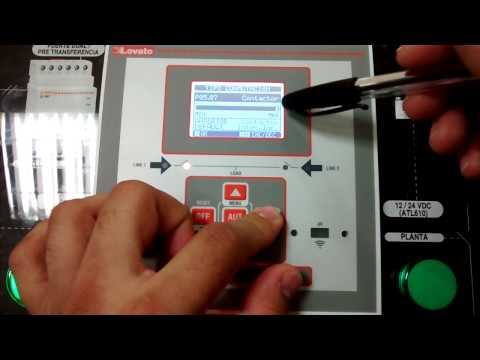

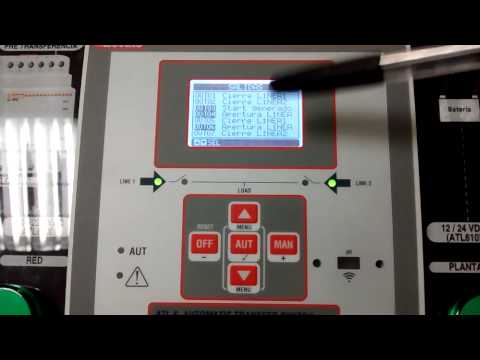

The new front panel combines a modern design with a clear and intuitive user interface with a backlight graphic LCD. The optical USB/Wi-Fi port on front allows communication with PC, smart-phone and tablet without removing power to the electrical panel.
