157.. 158.. 151.. (TUNNEL54)
Fire proof boxes in aluminium alloy. Palazzoli

Fire proof boxes in aluminium alloy suitable for applications inside tunnels, TUNNEL54 series
Product Inquiry

Product Inquiry

Fire proof boxes in aluminium alloy. Palazzoli

    DETAILED DESCRIPTION

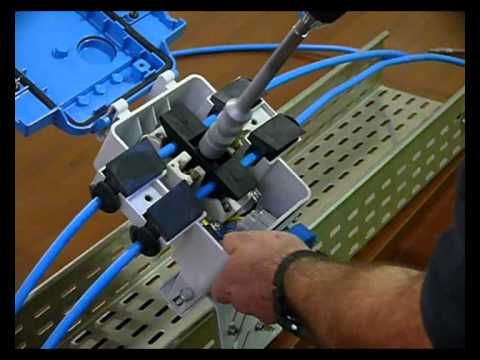

    The TUNNEL54 series is a range of devices dedicated to lighting systems. It includes specific products for junctions made in aluminium alloy or in reinforced self-extinguishing technopolymer, with IP66 protection rating. They consist of quick wiring insulation-piercing boxes, with universal entry of cables up to 35mm2 or with ceramic terminal block. The junction boxes for emergency systems guarantee continuity of service at 850°C for 90 minutes, are processed with ecological fluorizirconic passivation treatment and painted with hot-polymerised non-toxic polyester powders. The connections can be achieved by means of a plug-type socket IEC/EN 60309-1 and IEC/EN 60309-2, or by means of a cable gland.

    Further information about these products and their accessories at pdf-link below.

    • IP
      66
    • Cable gland line
      M16-M63
    • Dimensions
      164x242x135 - 252x315x193 mm

    DOCUMENTS AND SPECIFICATIONS
